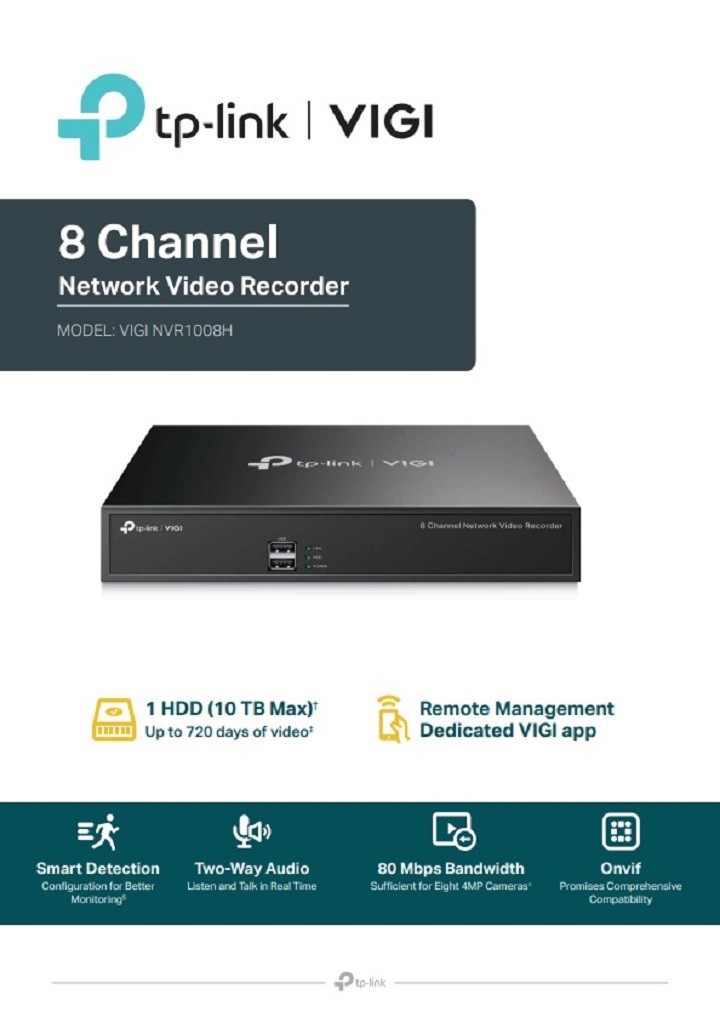

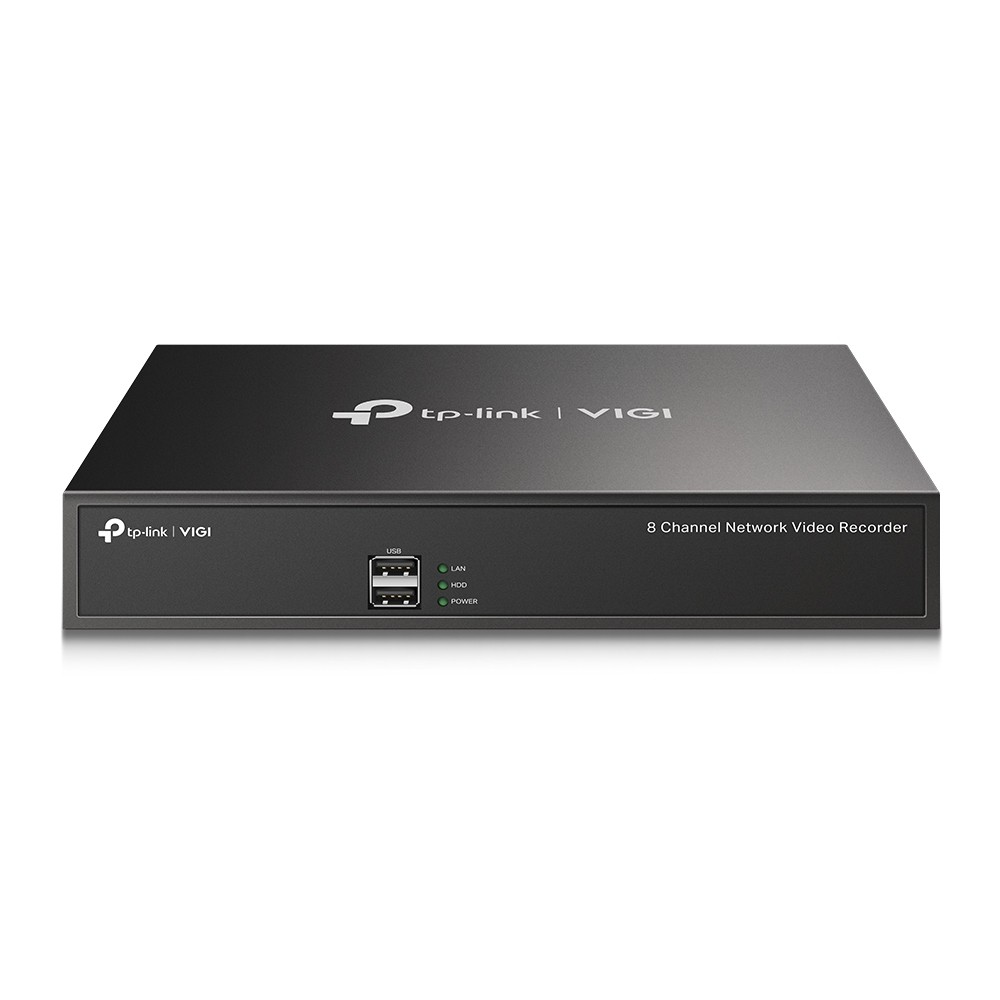

TP-LINK VIGI NVR1008H Network Video Recorder | 8 Channel NVR | Up to 10 TB Storage | 5 Years Warranty

Vezzo - Your Everyday Marketplace

$138.00

==============================================================================================

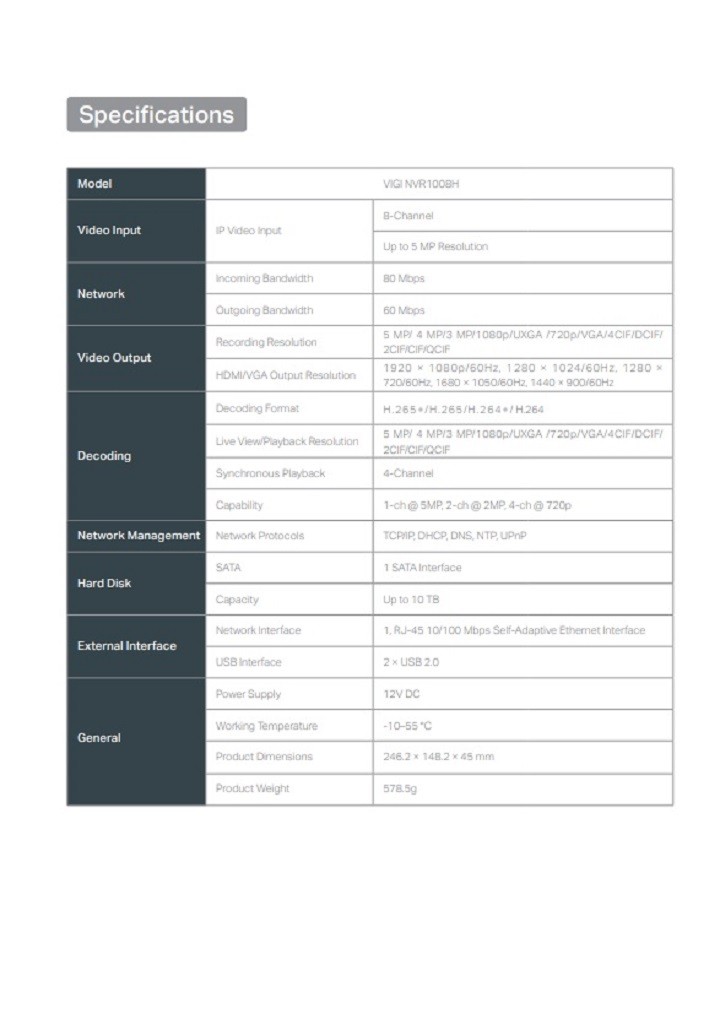

Technical Specifications:

IP Video Input: 8 Channel

Input Video Resolution: Up to 5 MP Resolution

Incoming Bandwidth: 80 Mbps

Outgoing Bandwidth: 60 Mbps

Recording Resolution: 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p /VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

Decoding Format: H.265+ / H.265 / H.264+ / H.264

Live View / Playback Resolution: 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback: 4 Channel

Channel Playback Capability: 1 ch @ 5MP, 2 ch @ 2MP, 4 ch @ 720p

Network Protocols: TCP/IP, DHCP, DNS, NTP, UPnP

Hard Disk Slot Type: SATA

SATA Interface Slots: 01

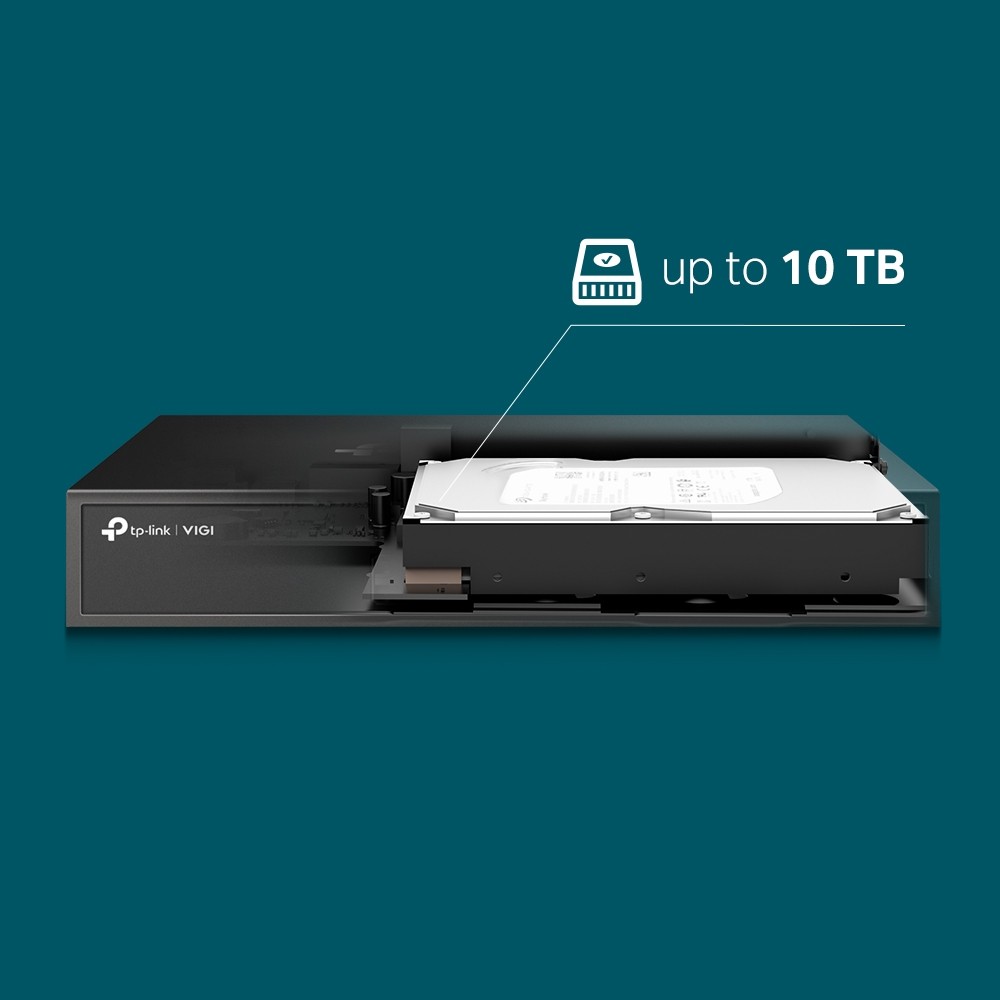

Capacity: Up to 10 TB

Network Interface: 01

Network Interface Type: RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 02

USB Interface Type: USB 2.0

Power Supply: 12V DC

Working Temperature: -10 – 55 °C

Product Dimensions: 246.2 × 148.2 × 45 mm

Product Weight: 578.5g

Warranty: 5 years Carry In

Ships From: Singapore

=========================================================================================

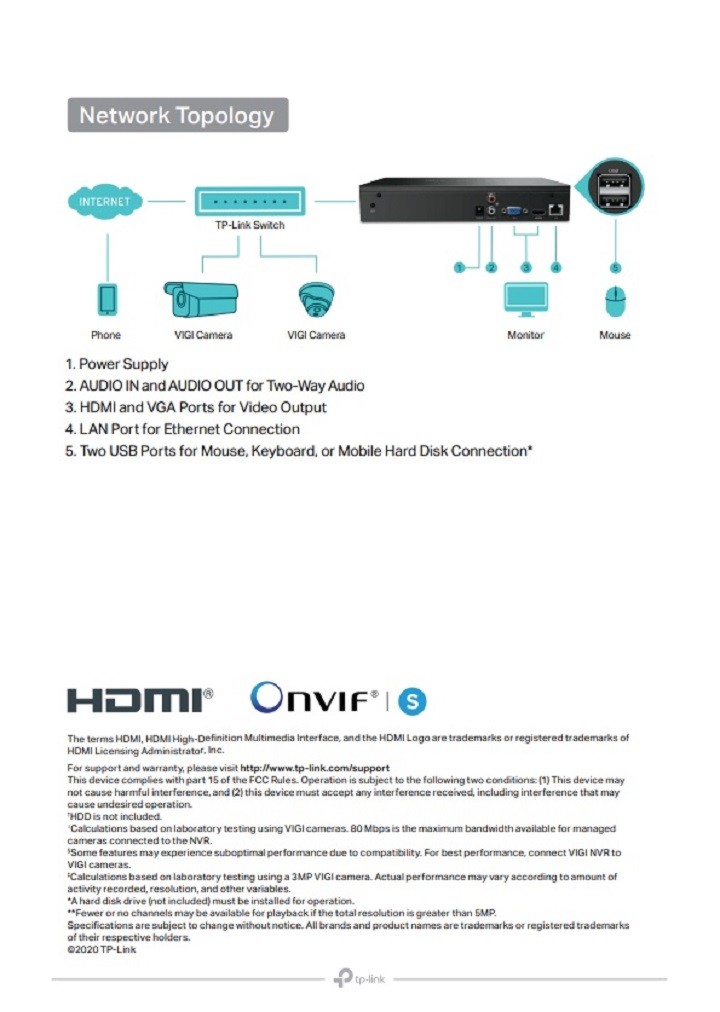

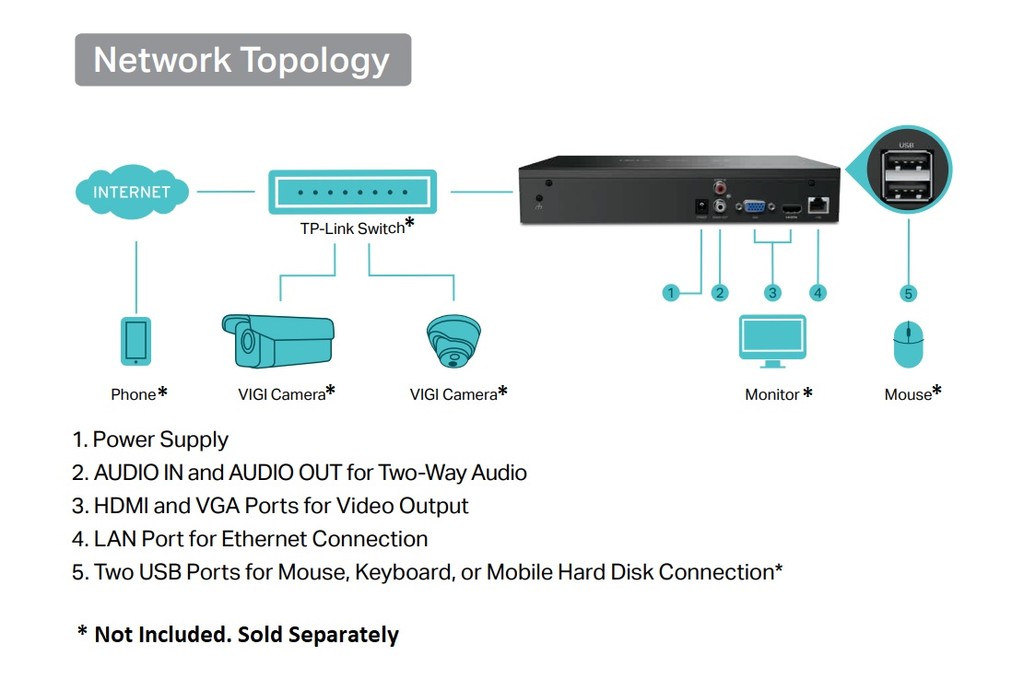

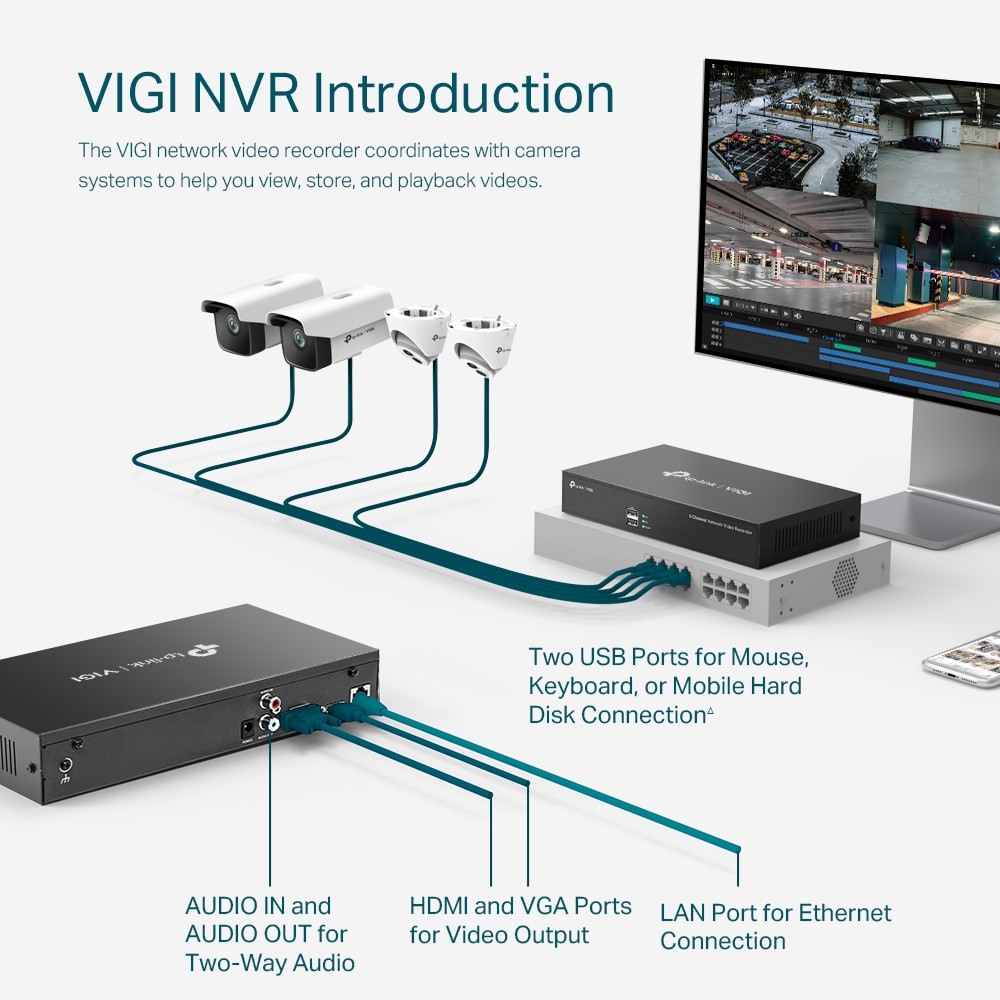

Network Topology:

Topology Flowchart:

Ph Internet ==> TP-Link Switch* ==> TP-Link NVR

=========================================================================================

Whats in the Box?

- TP-Link NVR1008H x 01

- Power Cable x 01

SATA HDD: Not Included*

HDMI Cable: Not Included

VGA Cable: Not Included

Phone: Not Included

TP-Link Switch*: Not Included**

TP-Link VIGI Camera: Not Included

Monitor: Not Included

Mouse: Not Included

* A SATA HDD is required to record.

** A TP-Link Switch is required to operate this NVR. Refer to user manual to see list of compatible TP-Link switches.
